The primary purpose of the configuration file is to:
1) Parameterize the framework module's clock frequency, data widths, and signal polarities.
2) Provide a user-friendly way to specify I/0 pinout information for application modules.
3) Provide convenient mechanism to define some VHDL constants and aliases for framework signals.

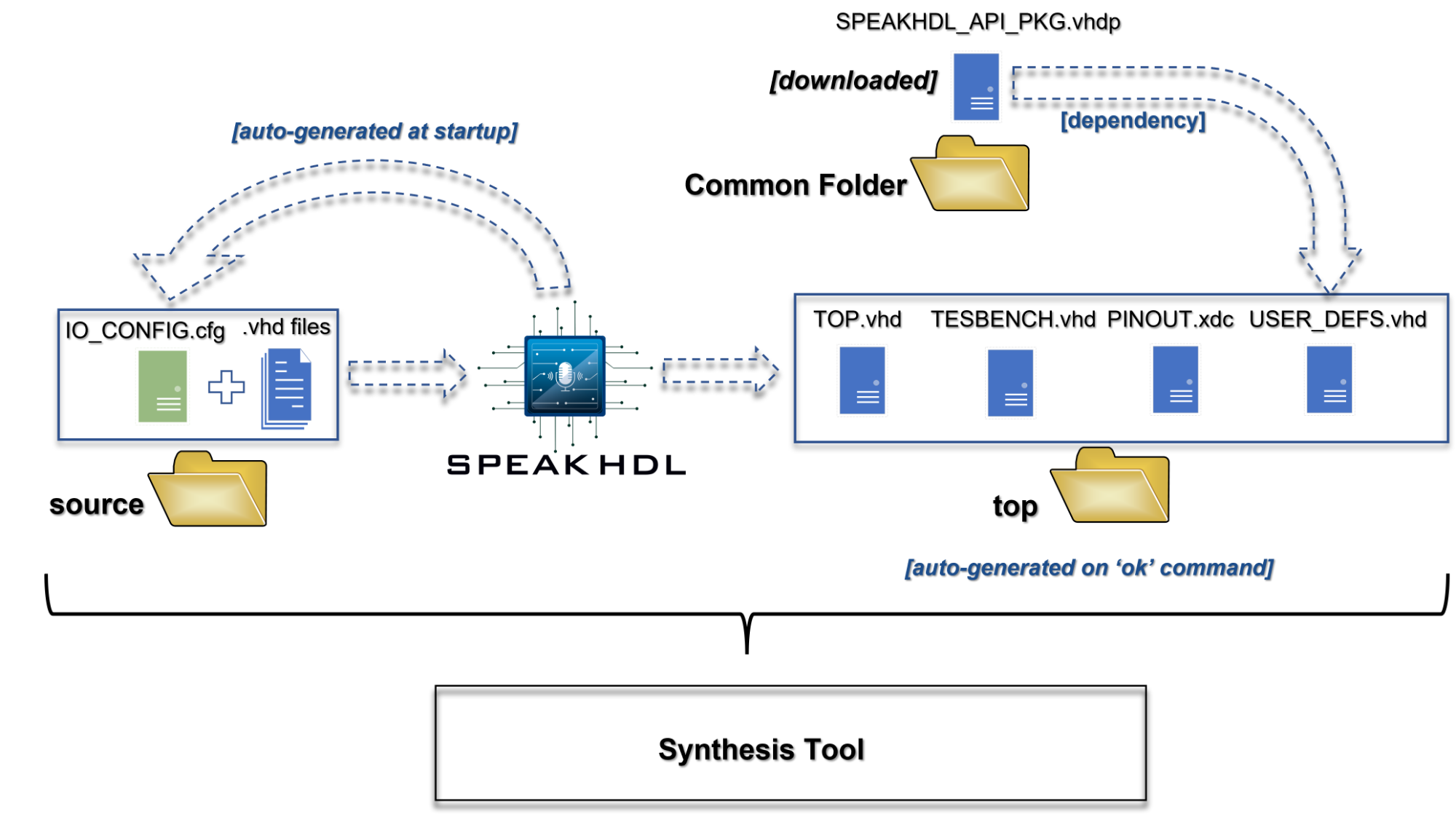

If there is no config_file present in the source directory, SpeakHDL auto-generates a default configuration file named IO_CONFIG.cfg. When the ok command is given, SpeakHDL utilizes the IO_CONFIG.cfg file, multiple application module (.vhd) files and generates the top directory containing the top level, testbench, user definitions (.vhd) file, and pinout constraints (.xdc) file. When using a synthesis tool, all that is needed for input is the contents of the source folder and a reference a single library file placed in a location where it is accessible by all SpeakHDL projects.
The config file is divided into a single global section and multiple local sections. The global section parameters affect the entire HDL design and define values such as the system clock frequency, reset pin polarity and data-path bit widths. These values parameterize framework module, thus affect all application modules. ect. Local sections, on the other hand, define application module specific values. This is where module specific pin locations, VHDL aliases for I/O signals, and filenames for direct component instantiation can be specified. Each application module is required to have a corresponding local section entry which SpeakHDL keeps track of automatically.
It is fair to think of the config_file as the glue that pieces all the SpeakHDL files together and a mechanism that keeps the SpeakHDL files abstracted away from the specifics of any synthesis tool. As for syntax, the config_file accepts standard key-value pairs for most parameters. A single space is allowed in between the equal sign that separates pairs, and some values (such as pinout information) are allowed to specify using a comma separated list with our without leading and trailing brackets. In addition,
VHDL constants and aliases for framework signals are allowed to be declared inside the config file using standard VHDL syntax.
SpeakHDL uses the following syntax when declaring an I/O signal within the config file:
<mode> <name>[(<# pins>)] = <pinout location or comma separated list of locations>
The mode can be either input, output, or io, and the name is any valid VHDL identifier. When declaring an I/O signal to be of type std_logic, the number of pins is assumed to be (1) and is omitted. When declaring a std_logic_vector of length (2) or more, the size of the vector is specified in between parenthesis next to the signal name. In this way, one can readily see the width of any I/O and a vector valued signal will not be confused with a scalar valued signal. In addition, each I/O signal is required to have a unique pinout location assigned to it. std_logic signals must be assigned exactly one pin location while signals intended to be std_logic_vectors must have as many pin locations assigned as the width of the signal. These pin locations must be defined as a comma separated list. If the number of pin locations are not specified, or are inconsistent with the # pins, SpeakHDL calculates the # pins from the number of pin locations in the list when the 'ok' command is given.
For example, consider the following I/O declaration in a config file section where the # pins are not specified.
When the 'ok' command is given, SpeakHDL would update the I/O declaration with the calculated width of (8).
Pinout locations for a vector valued signals are defined as a comma separated list of pinout locations. Due to the fact that a list is assumed to have indexes starting from 0 to N-1, pin location are also assumed to be assigned in ascending order from 0 to N-1. This sometimes leads to confusion when assigning pin locations for std_logic_vector which are assumed to have a downto range. As a convenience SpeakHDL allows pin location list to be reversed by using the reversed() syntax.
For example, the syntax below would reverse the pinout for an I/0 in the constraints file.
Parameter | Description | type | Allowable Values | Default Values |
---|---|---|---|---|
clock_pin | system clock pin location | string | <string> | <> |
reset_pin | system reset pin location | string | <string> | <> |
sys_clk_freq | default sys_clk frequency | integer | 1 - 400E6 | 100E6 |
reset_polarity | system reset polarity | std_logic | {'0', '1'} | '1' |
data_width | system data path width for fifo_data, shift_left,shift_right, exchange_register | integer | 0-64 | 32 |
control_width | system control path width for shared_register | integer | 0-64 | 32 |
default_signal_polarity | polarity when creating a new signal (default when-else logic) | std_logic | {'0', '1'} | '0' |
default_shared_register_polarity | polarity of a shared_register when not asserted | std_logic | {'0', '1'} | '0' |
default_voltage_standard | polarity generated in constraints file | voltage | {'2.5V', '3.0V', '3.3V'} | 3.3V |
pinout_filename | name of auto-generated .xdc file | string | <name>.xdc | PINOUT.xdc |
default_time_units | timing function units assumed when floating point value given in command | string | {us, ms, s} | ms |
command_help | parameter specifying if help is printed on .vhd file | boolean | {True, False} | True |
voice_enabled | parameter specifying if voice commands are enabled | boolean | {True, False} | False |
